Mini excavator attachment fitment is the difference between an attachment that mounts in ten minutes and one that turns into a week of returns, downtime, and pure frustration.
If you have ever ordered a bucket that was “for your ton class” and it still did not fit, you already know the problem. Tonnage labels are vague. Fitment measurements are not.
The fix is simple. Stop buying by tonnage alone and start buying by the three fitment measurements that actually control whether an attachment mounts correctly. Measure once, save the numbers, and you can shop for buckets, rakes, thumbs, augers, and grading tools with a lot more confidence.
If you run a small fleet or you stack jobs back to back, this matters even more. The wrong attachment is not just wasted money. It can stall a project, burn fuel while you troubleshoot, and force a rental you should not have needed.

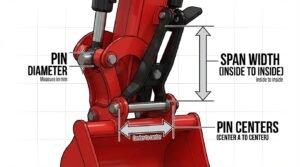

The only three measurements that matter for mini excavator attachment fitment
Most attachment issues are not quality problems. They are fitment mistakes.
Nearly every pin on the mini excavator attachment is matched using three dimensions:
Pin diameter
Pin center to center distance
Span width, also called ear width or dipper gap
If a listing does not clearly show these measurements, it is not a serious fitment listing. It is basically asking you to gamble.
Here is what each measurement means in real life:
Pin diameter decides whether the pins physically slide through the holes, and whether the attachment feels tight or sloppy.
Pin centers decide whether your stick and linkage line up correctly, so the attachment curls and dumps the way it should.
Span width decides whether the attachment even fits between the ears. This is one of the top reasons people end up with an attachment that will not mount.
A “two to three ton bucket” label is vague. These three numbers are not.
Why ton class is a trap and why measurements win every time
Buying by tonnage alone is risky because mini excavators are not standardized across brands, and sometimes not even standardized across model years of the same brand.
Here are the most common reasons “same ton class” attachments still do not fit:
Different manufacturers use different linkage geometry at the stick
Model year updates can change pin size or spacing
Your machine may have an aftermarket coupler or hitch
Previous owners may have swapped pins or bushings
Quick hitches can change engagement and working geometry
That is why pros measure once, save the numbers, and shop by fitment measurements forever.
A real example, so it feels less abstract
A typical fitment set might look like this:
Pin diameter 30 mm
Span width 121 mm
Pin centers 130 mm
Those three numbers are your fitment trio. Once you record yours, ordering gets easier because you are matching a physical standard instead of guessing from a tonnage label.
If you run multiple machines, keep a note for each one. Machine A fitment. Machine B fitment. That one habit removes confusion fast when you are buying attachments or swapping tools between jobs.
How to measure fitment fast and clean
The process is simple, but the reference points matter. Most people get burned because they measure the wrong spots.
Tools you need
A tape measure works
Calipers are best for pin diameter
Phone notes so you save the numbers immediately
A rag to wipe dirt and grease before measuring

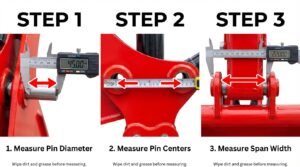

Step by step
Step one: choose an attachment that you know fits perfectly right now
Your current bucket is usually the best reference because it already mounts correctly.
Step two: measure the pin diameter and do not eyeball it
Use calipers if you can. A pin diameter that is slightly off can create slop, uneven wear, and faster bushing failure.
Step three: measure pin centers from center to center
This is the distance from the center of one pin to the center of the other. Measuring edge-to-edge is one of the most common ways people ruin their numbers.
Step four: measure span width inside to inside
Measure the inside gap between the ears. Do not measure outside to outside. This mistake alone causes a huge percentage of fitment failures.
Two quick pro tips
Take two or three measurements and compare them. Dirt, paint, and worn bushings can throw you off slightly.
Measure in millimeters. Most suppliers publish mini excavator attachment fitment specs in millimeters, and conversions can introduce rounding errors.
Fitment note, you should save it in your phone
Copy this exactly into your notes and keep it for future orders:
My mini excavator fitment
Pin diameter in mm
Pin centers in mm
Span width in mm
Coupler type pin on or quick hitch
Machine make model year
This boring note will save you money again and again because you can instantly compare any listing against your real measurements.

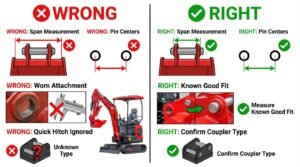

Common fitment mistakes that waste your week
These are the repeat offenders that cause returns and downtime:
Measuring span outside to outside instead of inside to inside
Measuring pin spacing from edges instead of centers
Measuring a heavily worn attachment and assuming it represents true fitment
Ignoring the quick hitch style and assuming all pin-on attachments will engage the same way
Assuming two to three-ton attachments always fit two to three-ton machines
Forgetting to confirm whether pins and bushings are included
Mixing up span width with the overall ear outside width
Pins, bushings, and wear: why your numbers might look weird
Sometimes you measure carefully and still think something feels slightly off. That is usually worn.
Bushings can oval out over time and create play
Pins wear and may not stay perfectly round
Aftermarket pin kits can vary slightly from the original sizes
Older buckets may have been repaired or modified
If your machine feels sloppy when curling or dumping, fitment is not just about mounting. Loose fitment also affects how the machine performs under load and makes precise grading harder.
If you run a quick hitch, fitment and safety go together
Quick hitches make attachment swaps faster, but do not treat them casually. Proper engagement and lock checks matter to prevent unintended attachment release.
Quick hitches affect fitment in two ways:
Geometry changes
Some hitches add offset or change how the attachment sits relative to the stick.
Compatibility requirements
Some attachments are designed for specific coupler styles.
A simple habit that helps: after mounting, do a visual lock check, then a gentle curl and shake test close to the ground before you start working.
What to send a seller so you stop guessing
Here is a simple message that prevents bad orders:
Machine make model year
Coupler type pin on or quick hitch
Fitment measurements in mm
Pin diameter
Pin centers
Span width
Can you confirm this attachment matches these measurements before I order
This saves time for both sides and forces the fitment conversation before money changes hands.
Troubleshooting: What it means when it almost fits
Almost fits usually means one of the three measurements is wrong, or the coupler style does not match.
Pins will not slide through, which usually means pin diameter mismatch, dirty holes, or misalignment from wrong pin centers
Fits between ears, but binds usually means pin centers are wrong or the linkage geometry does not match
Ears that do not line up usually means span width mismatch, very common
Mounts but has lots of play usually mean worn or missing bushings, undersized pins, or oversized holes
